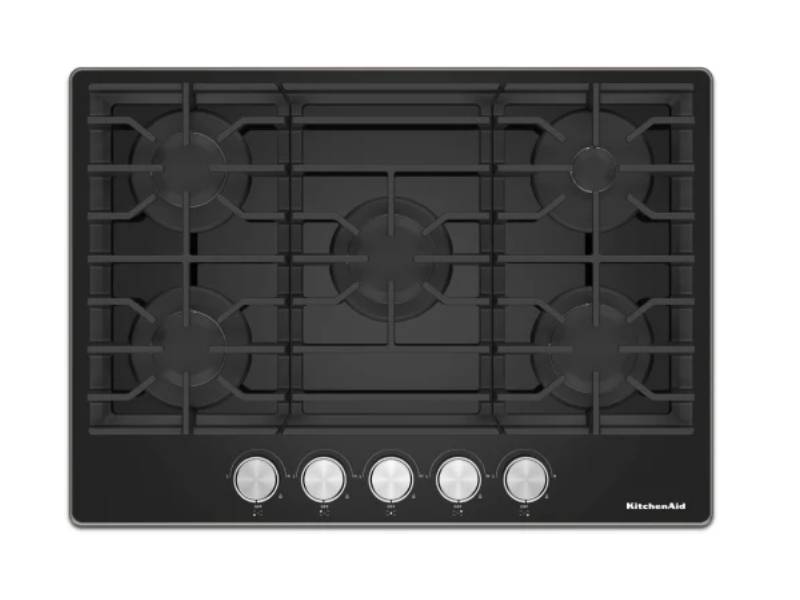

30" Kitchenaid Gas-on-Glass Cooktop - KCGG530PBL
You may also like
Top Features
Most Powerful 30" Gas-on-Glass Cooktop*
Most Powerful 30" Gas on Glass Cooktop*. 56.2K total BTU through 5 individual burners, including a central 18K burner.
18K BTU Burner
Delivers the high-heat you need to successfully sear, sauté, stir-fry, and bring pots to a rolling boil.
5K BTU Burner
A flame sized for small saucepans to manage low temperatures for simmering sauces until they look, feel and taste delicious.
Additional Features
15K BTU Burner
Reaches the high temperatures required to quickly get liquids to a boil and for high-temperature cooking techniques including getting a great sear on meat.
Two 9.1K BTU Burner
Use your 9.1K BTU Burner for your daily cooking, searing, and sauteéing.
Easy to Clean Glass Top Surface
A glass top surface that easily wipes to a reflective shine with just soap, water, and a soft cloth.
Dishwasher-Safe Metal Knobs
Professionally-inspired dishwasher-safe knobs are easy to clean and allow easy adjustment of cooktop settings, offering responsive, flexible control.
Dishwasher-Safe Full-Width Cast-Iron Grates
Cast-Iron Grates are dishwasher safe and allow for smooth, easy movement around the cooktop.
ADA Compliant
This appliance meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
| Dimensions | |
|---|---|
| Depth | 21.6 " |
| Width | 30.38 " |
| Height | 5.31 " |
| Net Weight | 68.3 lbs |
| Carton Depth Inch | 25.0 " |
| Carton Height Inch | 13.0 " |
| Carton Width Inch | 34.69 " |
| Maximum Height | 5.31 " |
| Minimum Height | 5.0 " |
| Specifications | |
| Country Of Origin | USA |
| Optional Accessories | W10216179 |
| Electrical | |
| Hz | 60 |
| Amps | 15 |
| Power Cord Included | Yes |
| Cooktop Details | |
| Left Front Element Burner Power | 9100BTU |
| Left Rear Element Burner Power | 9100BTU |
| Right Rear Element Burner Power | 5000BTU |
| Cooktop Configuration | All Burners |
| Left Rear Element Burner Type | Standard |
| Center Element Burner Power | 18000BTU |
| Left Front Element Burner Type | Standard |
| Right Front Element Burner Type | Standard |
| Right Front Element Burner Power | 15000BTU |
| Cooktop Element Style | Sealed Burners |
| Number Of Cooking Element Burners | 5 |
| Right Rear Element Burner Type | Simmer |
| Certifications | |
| ADA Compliant | Yes |
| UL | Yes |
| Description | |
| Combinations With Oven | KOES127P KOES527P KOES130P KOES530P KOES730P |
| Cooktop Type | Traditional |
| Size In | 30 |
| CONTROLS | |
| Knob Type | Dishwasher-Safe Metal |
| Control Type | Manual |
| Control Location | Front |
| Features | |
| Digital Display | No |
| Griddle | No |
| Automatic Pan Size Adjustment | No |
| Hot Surface Indicator Light | No |
| LP Convertible | Yes - Kit Included |
| Power Outage Compatible | Yes |
| Automatic Pan Detection | No |
| Downdraft Vent | No |
| Installs Over Built In Oven | Yes |
| Power Boost | No |
| Heating Element On Indicator Light | No |
| Configuration and Overview | |
| Heating Technology | Gas |
